Specification for Cross Belt Magnetic Separators


Specification-1

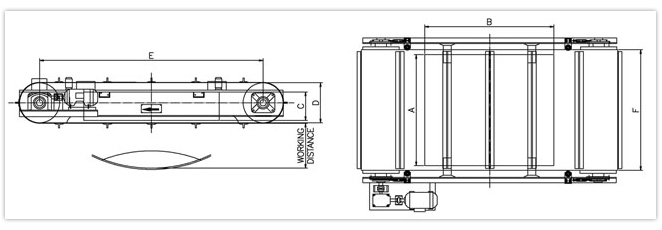

DIMENSIONS AND TECHNICAL DATA
Type Belt Width mm Working distance
mm		 Weight kg Drive KW Overall dimensions
Across Inline Length Width Height
OBMS-40/50-15 500 400 120-160 440 1,5 1380 1000 400
OBMS-40/70-15 650 400 120-160 540 1,5 1580 1000 400
OBMS-40/90-15 800 400 120-160 640 1,5 1780 1000 400
OBMS-40/110-15 1000 400 120-160 740 1,5 1980 1000 400
OBMS-60/50-20 500 650 170-220 640 1,5 1380 1200 400
OBMS-60/70-20 650 650 170-220 780 1,5 1580 1200 400
OBMS-60/90-20 800 650 170-220 920 1,5 1780 1200 400
OBMS-60/110-20 1000 650 170-220 1060 1,5 1980 1200 400
OBMS-60/130-20 1200 650 170-220 1220 1,5 2180 1200 400
OBMS-75/70-25 650 800 220-270 1200 2,2 1830 1380 500
OBMS-75/90-25 800 800 220-270 1340 2,2 2030 1380 500
OBMS-75/110-25 1000 800 220-270 1660 2,2 2230 1380 500
OBMS-75/130-25 1200 800 220-270 1800 2,2 2430 1380 500
OBMS-75/150-25 1400 800 220-270 1940 2,2 2630 1380 500
OBMS-95/70-30 650 1000 240-320 1430 2,2 1830 1580 500
OBMS-95/90-30 800 1000 240-320 1650 2,2 2030 1580 500
OBMS-95/110-30 1000 1000 240-320 1870 2,2 2230 1580 500
OBMS-95/130-30 1200 1000 240-320 2100 2,2 2430 1580 500
OBMS-95/150-30 1400 1000 240-320 2330 2,2 2630 1580 500
OBMS-115/90-35 800 1200 260-350 2270 3,0 2030 1780 500
OBMS-115/110-35 1000 1200 260-350 2250 3,0 2230 1780 500
OBMS-115/130-35 1200 1200 260-350 2570 3,0 2430 1780 500
OBMS-115/150-35 1400 1200 260-350 2900 3,0 2630 1780 500
OBMS-130/110-35 1000 1400 280-370 2580 3,0 2230 1980 500
OBMS-130/130-35 1200 1400 280-370 2950 3,0 2430 1980 500
OBMS-130/150-35 1400 1400 280-370 3340 3,0 2630 1980 500
OBMS-130/170-35 1600 1400 280-370 3750 3,0 2830 1980 500
OBMS-150/130-40 1200 1600 300-390 3400 3,0 2430 2180 500
OBMS-150/150-40 1400 1600 300-390 3840 3,0 2630 2180 500
OBMS-150-170/40 1600 1600 300-390 4310 3,0 2830 2180 500
OBMS-150-190/40 1800 1600 300-390 4810 3,0 3030 2180 500

Note:

1.Technical data specification subect to change.
2.Special cross belt magnetic separator can be made on request, Please send us your technical data and application, required for our engineers to provide.


Specification-2
Liquid Line Separators Specification
MAGNET DIMENSIONS
a b c d e f
420 500 200 220 1110 470
420 700 200 220 1310 470
420 900 200 220 1510 470
420 1100 200 220 1710 470
620 500 200 220 1110 670
620 700 200 220 1310 670
620 900 200 220 1510 670
620 1100 200 220 1710 670
620 1300 200 220 1910 670
770 700 250 320 1450 830
770 900 250 320 1650 830
770 1100 250 320 1850 830
770 1300 250 320 2050 830
770 1500 250 320 2250 830
970 700 250 320 1450 1030
970 900 250 320 1650 1030
970 1100 250 320 1850 1030
970 1300 250 320 2050 1030
970 1500 250 320 2250 1030
1170 900 250 320 1650 1230
1170 1100 250 320 1850 1230
1170 1300 250 320 2050 1230
1170 1500 250 320 2250 1230
1370 1100 250 320 1850 1380
1370 1300 250 320 2050 1380
1370 1500 250 320 2250 1380
1370 1700 250 320 2450 1380
1520 1100 250 320 2050 1580
1520 1300 250 320 2250 1580
1520 1500 250 320 2450 1580
1520 1700 250 320 2650 1580

Note:

1.Technical data specification subject to change.
2.Special cross belt magnetic separator can be made on request, Please send us your technical data and application, required for our engineers to provide.
